GOODS & PERSONNEL HOISTS SC200-200
Year:2020

Load Capacity:2x2000kg

Speed:0-33m-min

Usage:Construction Hoist

Size:3.2x1.5x2.5

Maximum working range:650m
Details description

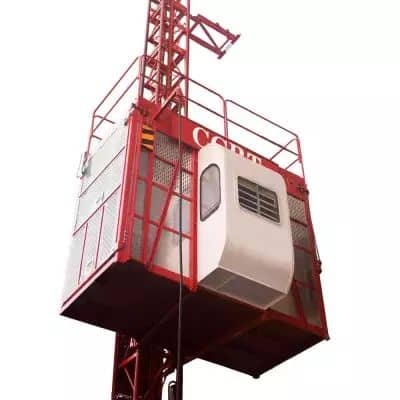

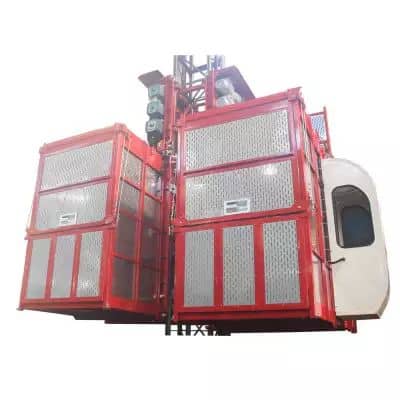

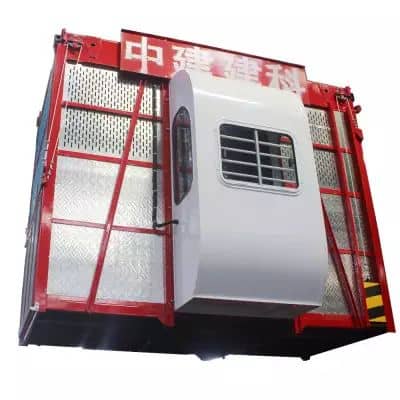

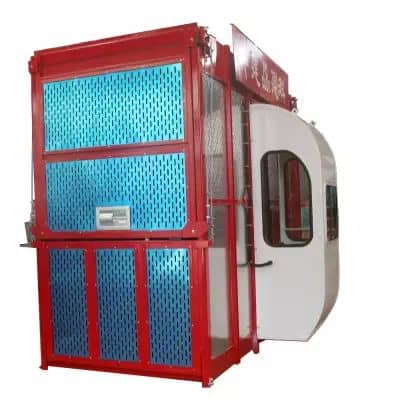

SC200/200 construction elevator (referred to as man-cargo elevator) is composed of several parts, such as a car, drive mechanism, standard section, attached wall, chassis, fence, electrical system, etc. It is frequently used mechanical equipment in high-level transportation of bridges, chimneys, mansions, industrial buildings, civil buildings, etc. Due to their unique box structure, which makes them comfortable and safe to ride, construction elevators are usually used with tower cranes at construction sites.

model numberSC200/200
   Rated load capacitykg2000/2000
   Rated Installation Loadkg1000/1000
   Rated installation load of boomkg200
   Maximum erection height (which can be increased according to customer’s requirements)m650
   Operating speed (50 Hz/380 volts)m/min33
   Fall arrester
SAJ40-1.2
   Cage internal dimensions (L×W×H)m3.2×1.5×2.5
   Standard section specifications (L×W×H)mm650×650×1508
   Motor power (worm gear)kw2×3×11
   Outer cage weightkg1480
   Cage weightkg2×1500
   Weight of transmission mechanismkg500
   Weight of standard sectionkg150 (δ=4.5)
170 (δ=6.3)
190 (δ=8.0)
