| Type: | Luffing Tower Crane | Max working range & tip-load (m/t) | 55/13 |
| Name brand: | Favelle Faxco | Model: | M1280D |
| Max. Load: | 100 Ton | Jib length: | 55 m |
| Load at jib end: | 13 Ton | Condition | Used |
| Mast Section Size: | 3.6*3.6*4m | Year | 2011 |

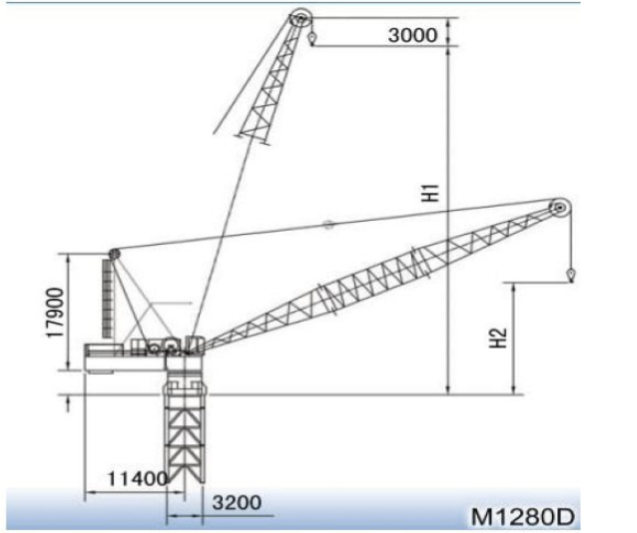

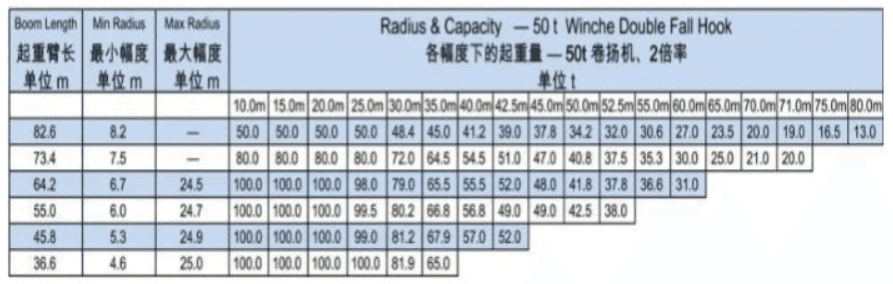

The M1280D tower crane is a 2450-ton boom-type, internal combustion engine-powered, fully hydraulically controlled, stepless speed-adjustable heavy-duty tower crane produced by Shanghai Fafuk Hoisting Engineering Equipment Co., Ltd. The total length of the 6-section boom is 55m, and the maximum lifting When the double rope weighs 100t, the maximum working range is 24.7m; at a lifting radius of 52.5m, the double rope lifting weight is 38t. Adopt the Roboway security monitoring system to achieve automatic protection.
