| Type: | Hammerhead Tower Crane | Max working range and tip-load (m/t) | 80/9.8 |
| Name brand: | zoomlion | Model: | D1100-63 |
| Max. Load: | 63 Ton | Jib length: | 80 m |
| Load at jib end: | 9.8 Ton | Condition | Used |
| Mast Section Size: | 4.2×4.2x6m | Year | 2012 |

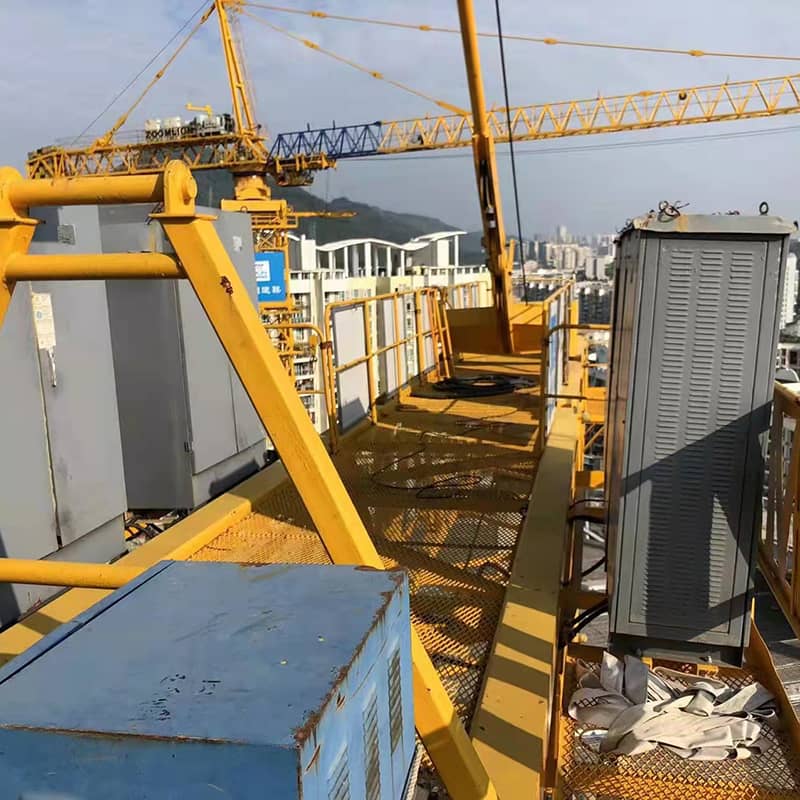

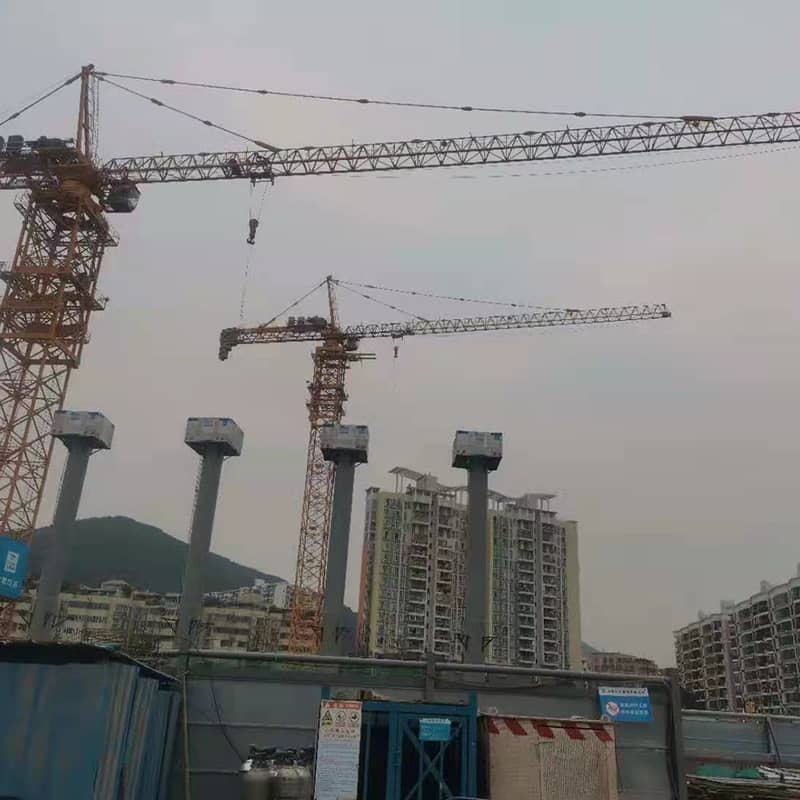

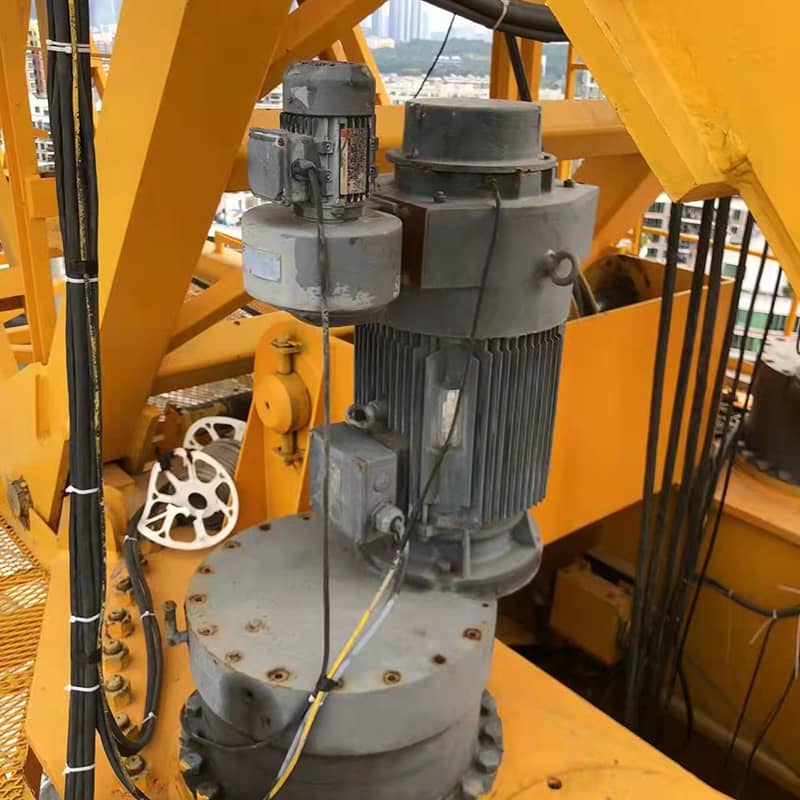

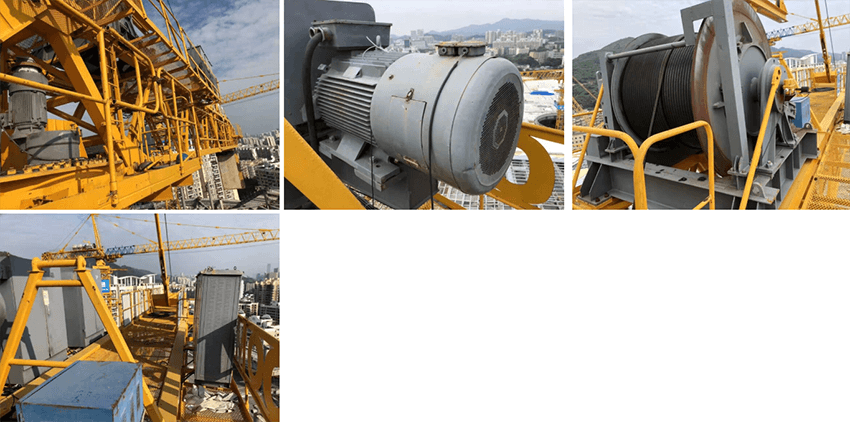

»Detailed Photos«
»Product Advantages of Tower Crane«
Some of the parameters of the Zoomlion D1100-63 hammerhead tower crane are as follows:
Item Unit Value
Maximum lifting capacity/amplitude t/m: 63/16.05 (80m boom length)
Maximum lifting moment: t.m. 1100
Maximum working range: 80-jib tip
Maximum lifting weight: 9.8t (80m boom length)
Independent height m 90.8m for outrigger fixed type and 93.2m for traveling type
Rope capacity: 1070
Max. lifting speed: m/min 75
Luffing speed: m/min, 0–50
Slewing speed (r/min): 0-0.6
Traveling speed (m/min): 0–15
| Mechanism Group | Hoisting | M5 | ||||||||||||||
| Slewing | M5 | |||||||||||||||
| Trolleying | M4 | |||||||||||||||
| Group Classification | A5 | |||||||||||||||
| Rated hoisting moment (KN·m) | 1100 | |||||||||||||||
| Max hoisting height (m) | Stationary | Anchore d | ||||||||||||||
| 90.8 | 210.5 | |||||||||||||||
| Working Radius（m） | Maximum | 80 | ||||||||||||||
| Minimum | 6.5 | |||||||||||||||
| Max hoisting capacity (t) | 63 | |||||||||||||||
| hoisting | Model | QPL4272 | ||||||||||||||
| Fall | α＝2 | α＝4 | α＝6 | |||||||||||||
| Weight/Speed | 4/72 | 10.5/57.6 | 21/28.8 | 8/36 | 21/28.8 | 42/14.4 | 12/24 | 31.5/19.2 | 63/9.6 | |||||||
| Minimum stable lowering speed at 2 fall | ≤5 | |||||||||||||||
| Power | 132 | |||||||||||||||
| Trolleying | Speed(m/min) | 0～35/50 | ||||||||||||||
| Power(kW) | 18.5 | |||||||||||||||
| Slewing | Speed(r/min) | 0~0.6 | ||||||||||||||
| Power(kW) | 3×18.5 | |||||||||||||||
| Jacking | Working Pressure( MPa) | 31.5 | ||||||||||||||
| Speed(m/min) | 0.4 | |||||||||||||||
| Power(kW) | 22 | |||||||||||||||
| Total power(kW) | 187.5 (excluding the erecting mechanism) | |||||||||||||||
| Counterweight(t) | 40m | 50m | 60m | 70m | 80m | |||||||||||
| 34.00 | 45.75 | 52.00 | 62.5.0 | 68.75 | ||||||||||||
| 工作电压 | ~380(±10% )V 50 Hz | |||||||||||||||
| 风速 | operating state | ≤20m/s | ||||||||||||||
| non-operational state | ≤46m/s | |||||||||||||||
| working temperature（℃） | -20～+40 | |||||||||||||||
| Working altitude（m） | ≤1000 | |||||||||||||||
| Storage temperature（℃） | -20～+55 | |||||||||||||||
The features of the Zoomlion D1100-63 hammerhead tower crane are:
Superior performance: piece-type tower body, section to section using specially treated pin connection, web square steel pipe structure with low wind resistance and high rigidity, which is conducive to reducing the overall load of the tower crane, high stability, making the D100 transportation volume small, easy to install, dismantle, and transport.
Stable and reliable: slewing, luffing, and lifting are all controlled by frequency conversion, which makes the tower crane run more smoothly. The electric control adopts PLC control, which improves reliability and safety.
Comfortable and convenient: the humanized layout of the whole machine makes operation more comfortable; the rationalized maintenance layout makes maintenance more convenient.
If you have any questions/suggestions , please feel free to inform us. Your valuable information are highly appreciated.
