Multiple working modes and a wide range of applications. The machine has working modes such as outrigger fixing, underframe fixing, pre-embedded bolt fixing, and external wall attaching, which apply to different construction objects.
The appearance of the whole machine is international, popular, and beautiful.
High working speed, good speed regulation performance, luffing mechanism, and slewing mechanism adopt the most advanced frequency conversion step-less speed regulation program in the world, resulting in more stable and reliable work.
The driver’s room is independent and external, with good vision and large internal space, creating a good working environment for the operator.
All kinds of safety devices are available, and they are mechanical or electromechanical integration products adapted to the harsh construction environment, which can ensure the reliable work of the tower crane.

»Basic Info«

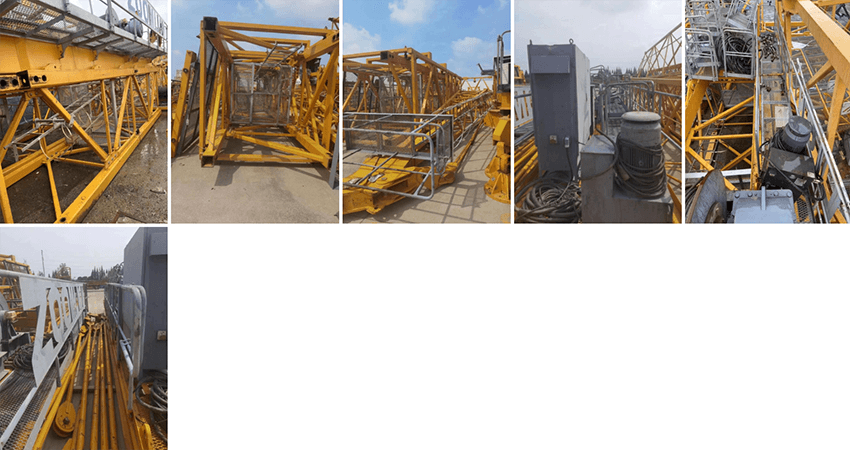

»Detailed Photos«

»Product Main Parameters«

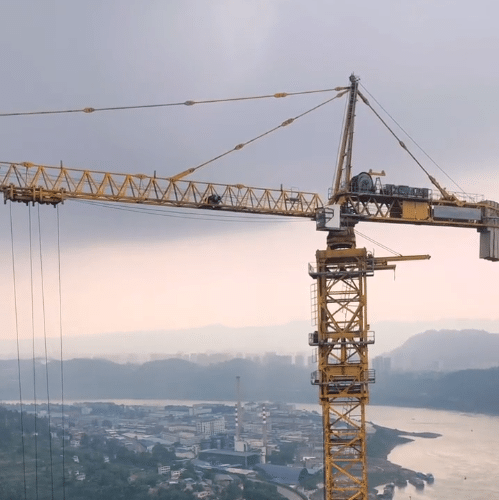

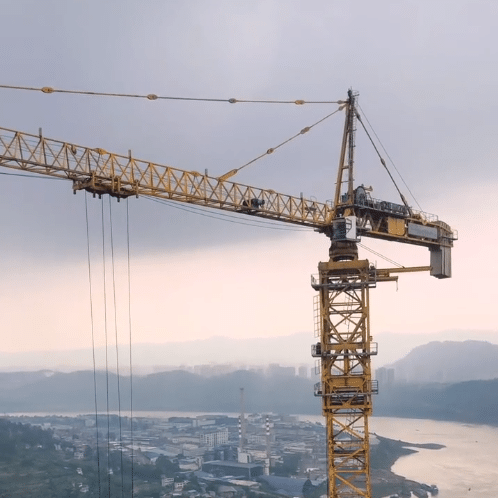

The parameters of the Zoomlion TC7035-16 tower crane are as follows:
Range: 3.75–70 meters.
Maximum lifting weight: 16000 kg.
Power supply: 380 (±10%)/50 volts Hz.
Total power: 86 kW.
Nominal lifting moment: 2500 kN/m.
Fixed height: 61.5 meters.
Attachment height: 241.5 meters.
Lifting weight at boom end: 3500 kg.

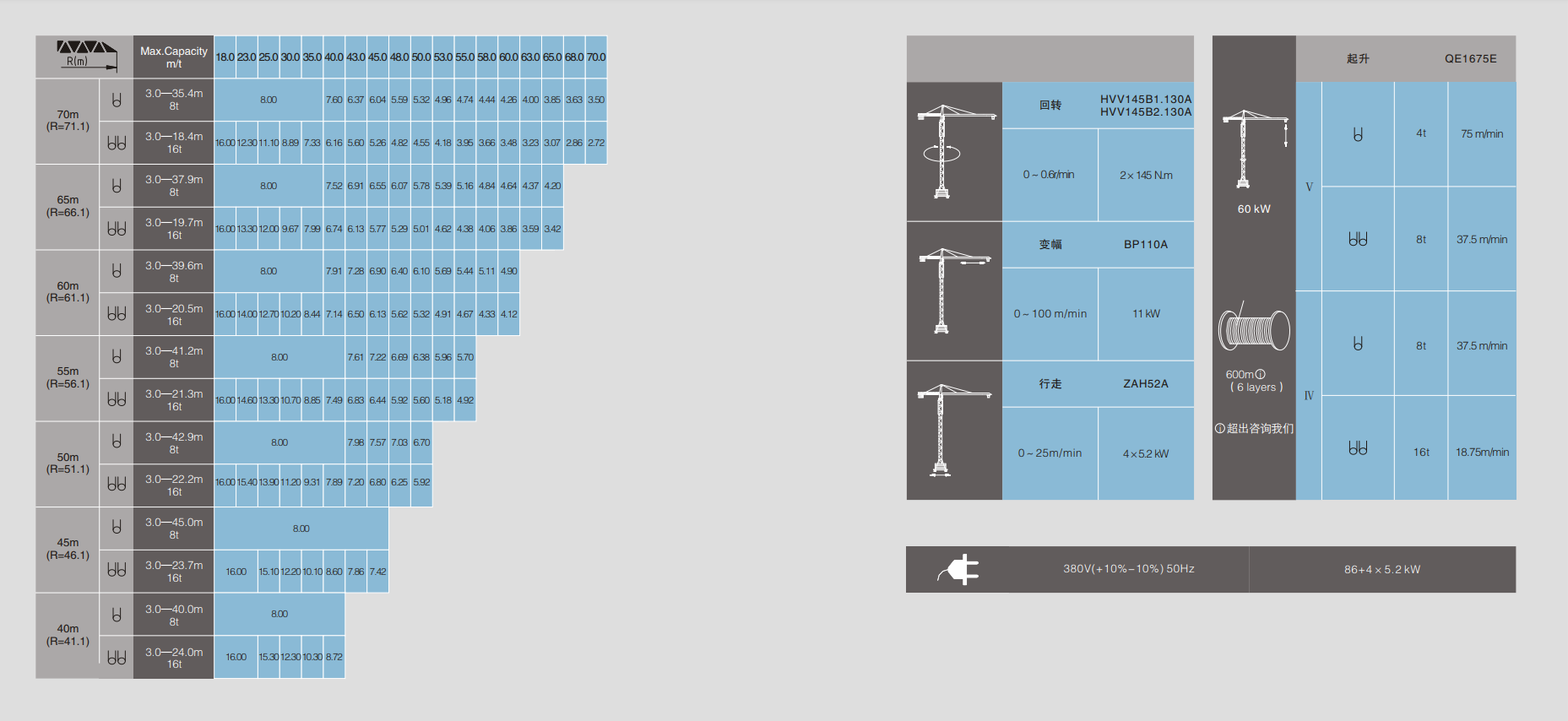

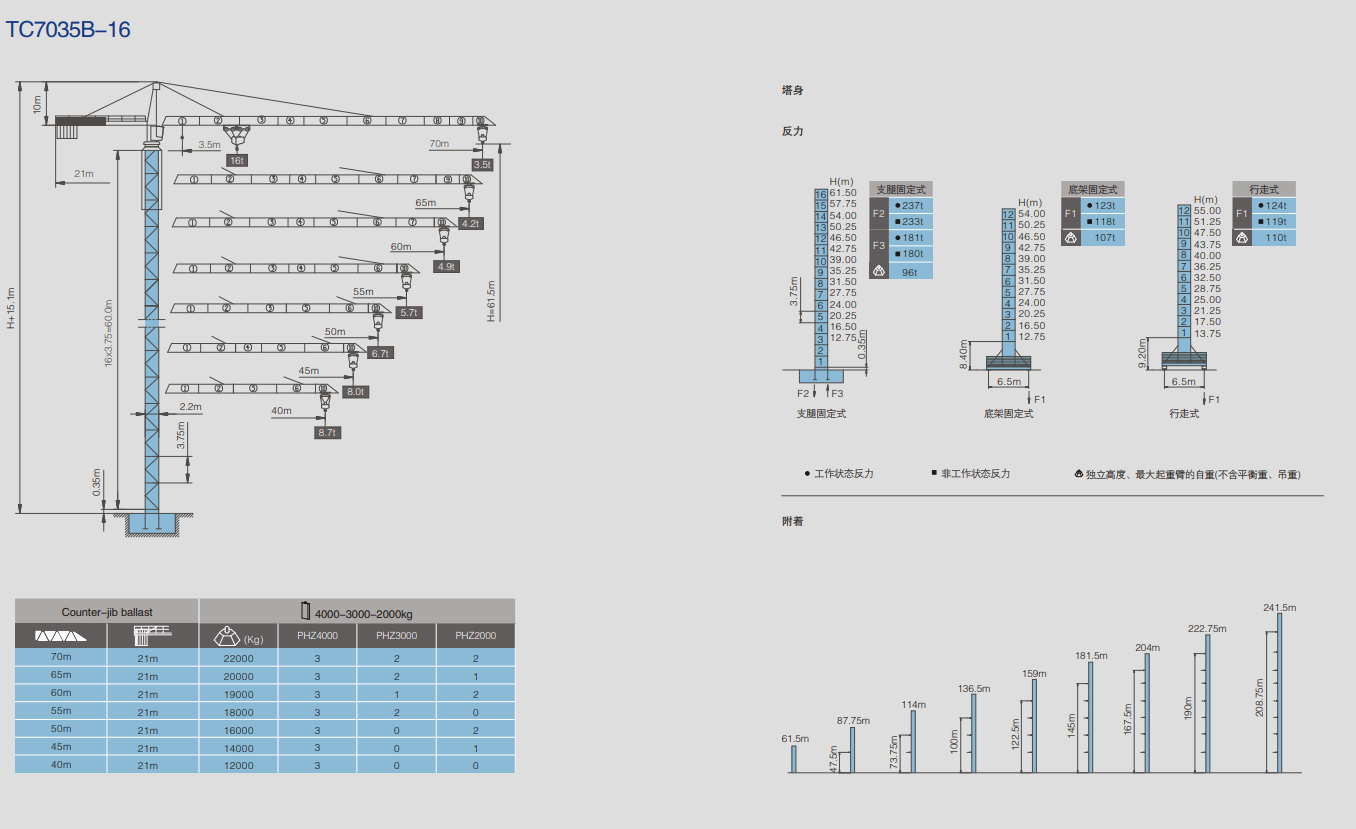

The configuration of the Zoomlion TC7035-16 tower crane is as follows:

Maximum jib length: 70m; jib length combination: decreasing every 5 meters; minimum jib length: 40m.
The maximum lifting capacity is 16t, and the maximum lifting weight at the tip of the boom is 3.5t when the boom length is 70m.
Rated lifting moment: 2500 kN/m.
The tower adopts a 2.2m×2.2m×3.75m connecting headpiece type standard section.
The maximum independent height is 61.5 m, and the maximum attachment height is 241.5m.
Lifting mechanism: QE1675E, power 60 kW, rope capacity 485m.
Slewing mechanism: HVV145B1.130A/HVV145B2.130A, plugging torque 2×145N-m.
Slewing mechanism: BP110A, power 11 kW.
Tower type: outrigger fixed type, undercarriage fixed type, traveling type, internal climbing type.
The electrical control system adopts PLC control, and the key components adopt internationally famous brand products, which greatly improves the reliability of the Zoomlion tower crane.
