The Zoomlion WA7015-10 flat – top tower crane is a high – performance construction machinery with the following main features and parameters.

• Lifting Capacity: The maximum lifting capacity is 10 tons, and the tipping load at the jib end is 1.5 tons. It has excellent lifting performance with a long short arm, and can lift 6 tons at a 45 – meter arm length, which is suitable for PC construction.

• Working Range: The maximum jib length is 70 meters, and the maximum working range is 70 meters. The maximum free – standing height is 60 meters.

• Lifting Speed: The maximum lifting speed is 95 m/min, the slewing speed is 0 – 0.8 r/min, and the luffing speed is 0 – 75 m/min.

• Other Parameters: The rated lifting moment is 2340 t·m, and the drum capacity is 530 m.

This type of tower crane has the advantages of simple structure, high reliability, and convenient operation. It is widely used in various construction sites such as high – rise buildings, bridges, and industrial plants, and can meet different construction requirements.

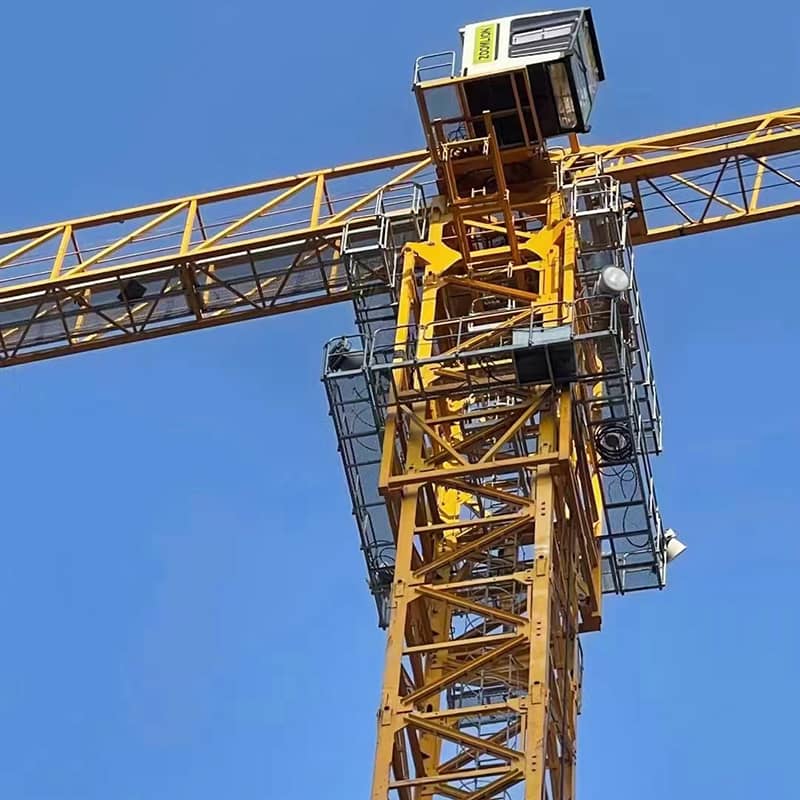

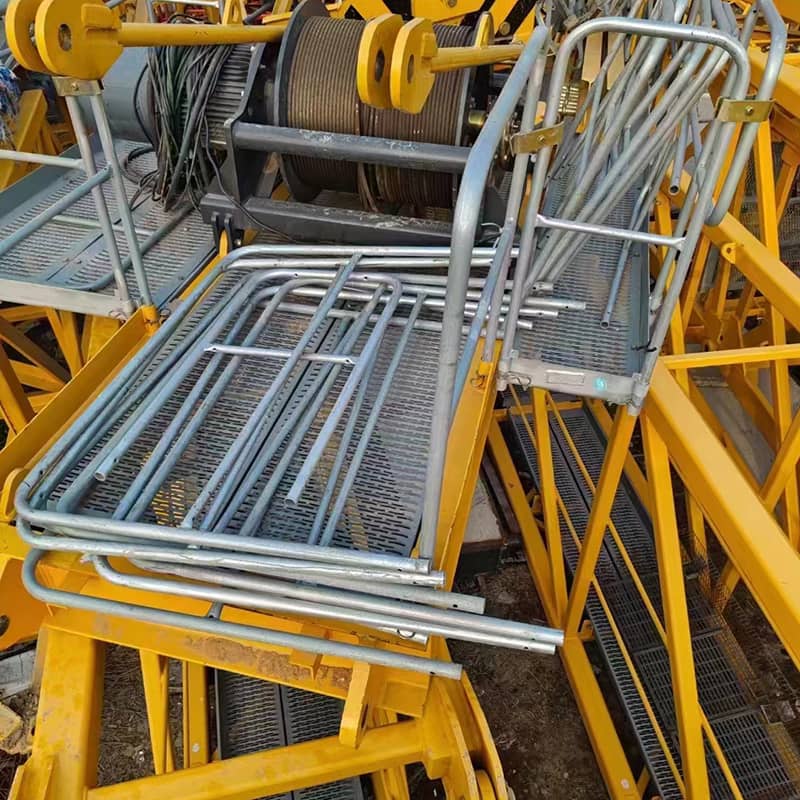

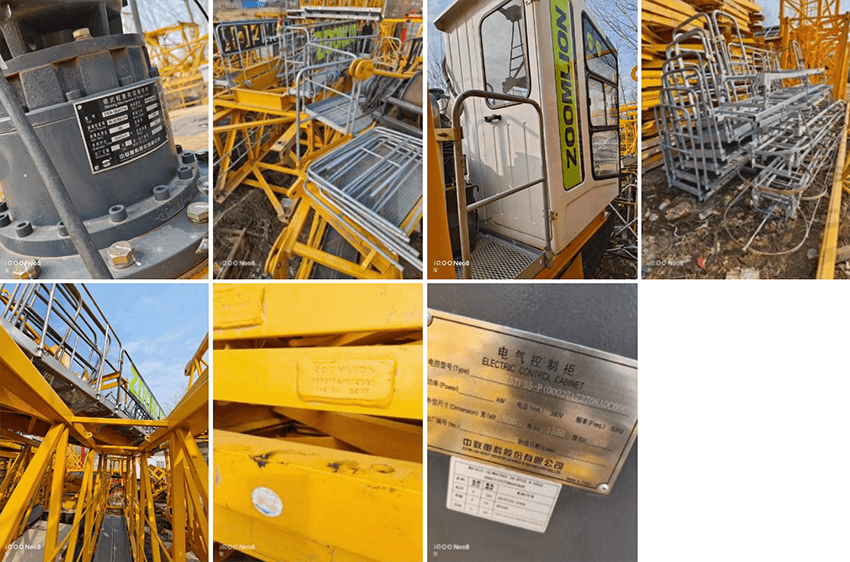

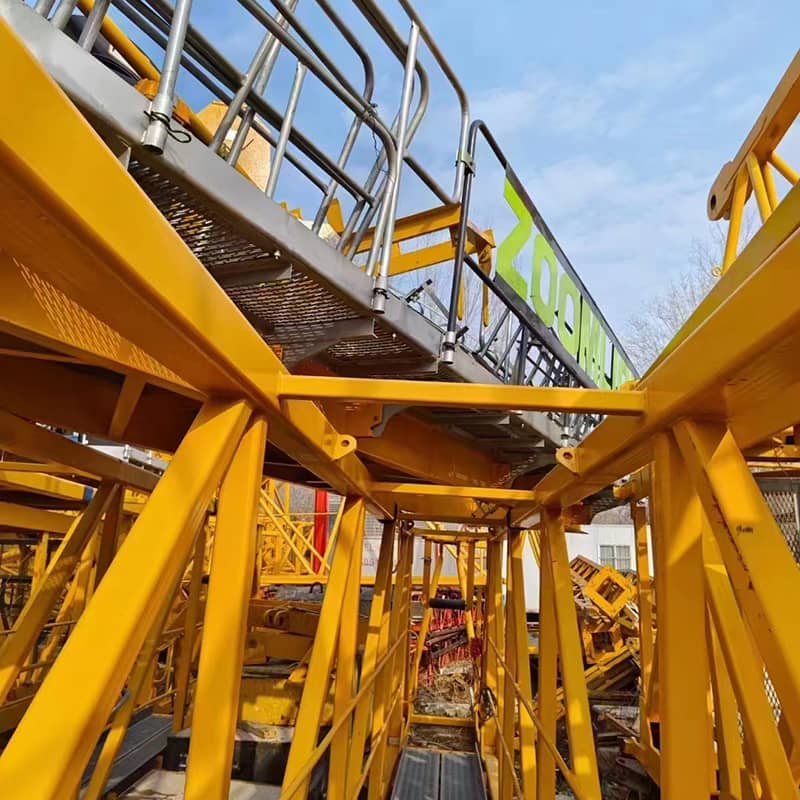

»Detailed Photos«

»Product Advantages of Tower Crane«

The Zoomlion WA7015 is designed with safety and reliability in mind. It is equipped with four large integrated speed mechanisms and a new temporary override function. The crane has triple protection against overload and impact events and double protection against collisions to ensure a safe working environment. The electrical control system has an intelligent detection mechanism to prevent hook slippage. In addition, the tower configuration includes inclined climbing ladders and a large fall protection platform to further enhance safety measures.

Zoomlion WA7015 excels in maneuverability. Thanks to its state-of-the-art inverter slewing system, it provides instant response and smooth operation throughout the lifting process. The crane can stop without backswinging, and the millimeter-ant-positioning speed provides precise positioning with a minimum speed of 5 mm/s. It can easily adjust the speed to meet the load requirements for efficient and accurate movement.
