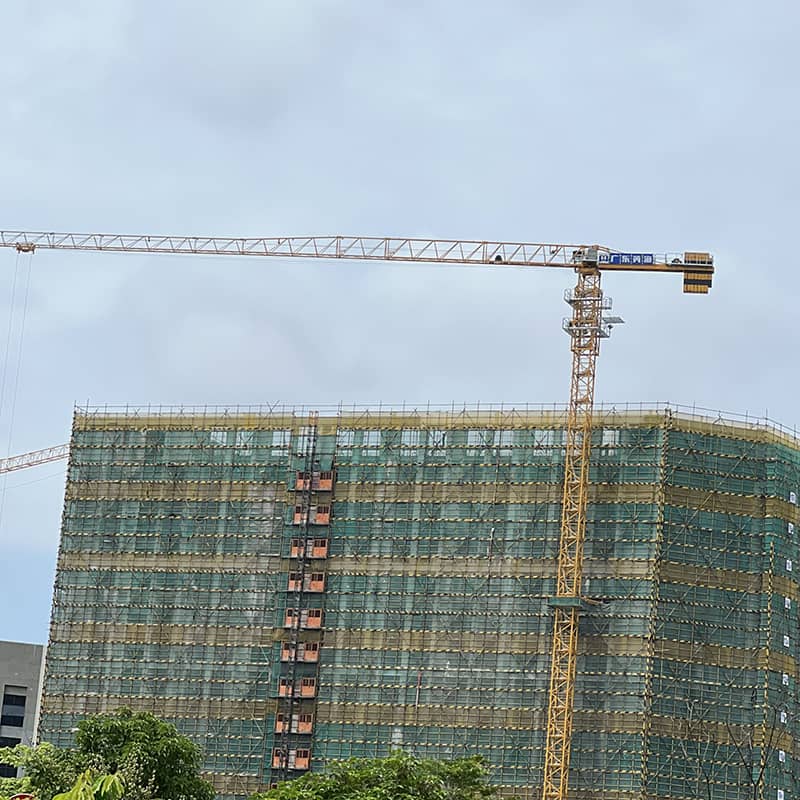

The Zoomlion WA6515-8 flat-top tower crane has excellent lifting performance, strong adaptability to PC construction, and fast lifting speed.
The tower crane has a maximum lifting capacity and range of 8 tons (17.2 meters), a maximum lifting moment of 186.4 tons per meter, a maximum working range of 65 meters, and a maximum lifting weight of 1.5 tonnes at the tip of the boom. It has an independent height of 42 meters, a rope capacity of 440 meters, a maximum lifting speed of 100 meters per minute, a luffing speed of 0-75 meters per minute, and a slewing speed of 0-0.8 revolutions per minute.
| LuffingType: | Flat-Top Tower Crane | Max working range & tip-load (m/t) | 65/1.5 |
| Name brand: | zoomlion | Model: | WA6515-8 |
| Max. Load: | 8Ton | Jib length: | 65m |
| Load at jib end: | 1.5 Ton | Condition | Used |
| Mast Section Size: | 1.8×1.8×2.8m | Year | 2021 |
In addition, the WA6515-8 tower crane has the following features:
Excellent lifting performance: the tower crane’s maximum lifting capacity and maximum lifting moment are at the leading level in the industry, which can meet various construction requirements.
Strong adaptability to PC construction: The WA6515-8 tower crane is specially designed for PC construction, with good adaptability and reliability.
Fast lifting speed: The maximum lifting speed of this tower crane is 100 metres per minute, which can improve construction efficiency.
If you have any questions/suggestions , please feel free to inform us. Your valuable information are highly appreciated.
